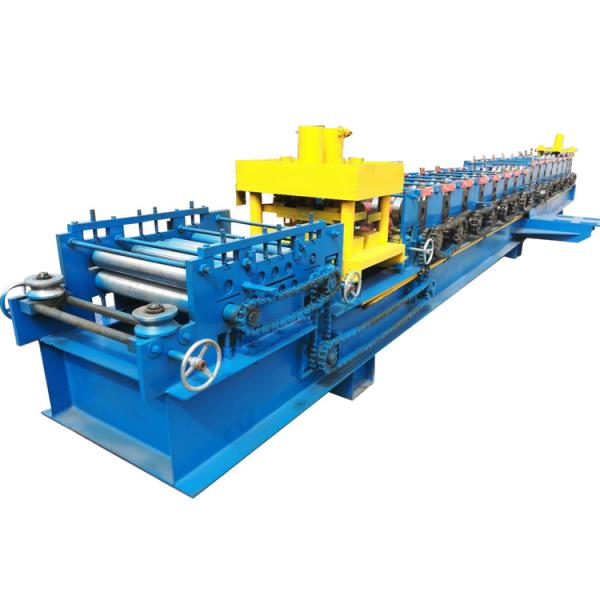

1.5 Inch Chain Downspout Roll Forming Machine

Ask Lasest Price
Brand Name :	OEM
Price :	Negotiable
Certification :	CE;ISO
Delivery Time :	40days
Payment Terms :	L/C, T/T, Western Union
Supply Ability :	20 sets per month

Add to Cart

Product Details
Company Profile

1.5 Inch Chain Downspout Roll Forming Machine

1.5 Inch Chain Downspout Roll Forming Machine

Products Parameter

Feeding rack	Manual tightening, passive feeding
Loading rack load	5T
frame	350H steel welding
Stand thickness	18MM
Feed rack guide form	Side roller
transfer method	Wall plate chain drive
Shaft diameter	80mm
Chain	1.5 inch
Forming speed	7-10m / min
Forming rows	12-row molding, 7-roller leveling
Punching method	Hydraulic forward punch
Roll material	Bearing steel
Roll heat treatment	HRC58 ° -60
Hydraulic station motor	4kw
Hydraulic station oil pump	Gear pump
Cut off method	Twisted punching
Motor Power	11kw
Rolling thickness	1.0-3.0mm
Expanded width	378mm
Length accuracy	± 2mm
Control System	PLC

Applications

Rolled Curved or Straight, Punched or Slotted

1.5 Inch Chain Downspout Roll Forming Machine

Product Details

Rolled Curved or Straight, Punched or Slotted

FAQ

Q: How to maintain the machine?
A: add mechanical lubrication equipment to chain, bearing and cutting slide every month. Add mechanical lubrication to the case every half a year.
Q: Do you sell only standard machines?
A: No, most of our machines are built according to customers specifications, using top brand name components.
