    Coil Width 600mm Standing Seam Roll Forming Machine

    Ask Lasest Price
    Brand Name : OEM
    Model Number :
    Certification : CE;ISO
    Price : Negotiable
    Payment Terms : L/C, T/T, Western Union
    Supply Ability : 20 sets per month
    Delivery Time : 40days
    • Product Details
    • Company Profile

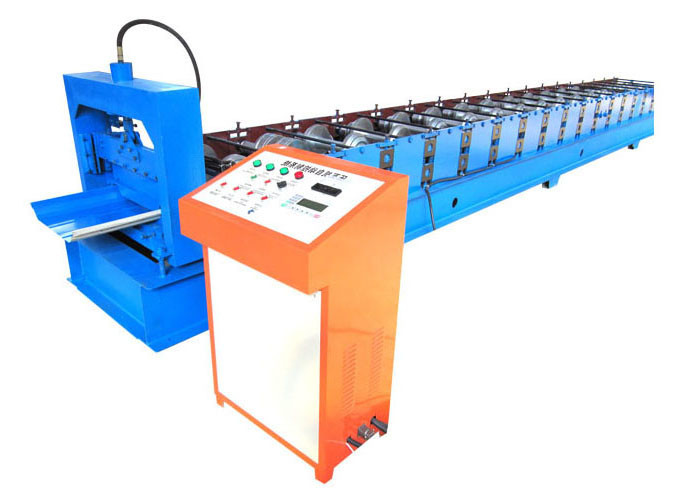

    Coil Width 600mm Standing Seam Roll Forming Machine

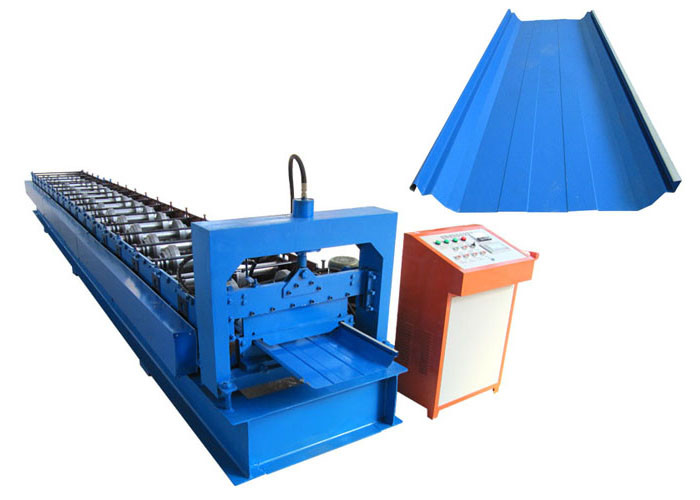

    Coil Width 600mm Standing Seam Roll Forming Machine


    • Raw Materials Request
    1.Suitable MaterialColored Steel plate, Galvanized Board, Aluminum Plate
    2.Coil width600mm
    3.Thickness0.3-0.8mm
    4Efficiency width470mm
    • The Host Quality Requirements:
    1.ColorBlue body, Red and yellow secondaryAccording to customer requirements
    2.Appearance size (About)9800mm*1500mm*1510mmExcluding the console
    3.Rows of rollers20 rows
    4.Rolling material45# steel,roller surfaces polishing, hard plating
    5.Diameter of shaft¢70mm
    6.Service life10 years
    7.Total power7.5KW
    • Turn/Cut/Console Quality Requirements
    1.Productivity20-25m/min

    1 day=8 hours

    12,000m/day

    2.Cut ModeHydraulic forming after cutting off
    3.Cutter materialCr12 Heat TreatmentThick, high wear-resisting knife plate
    4.

    Electronic control

    system

    PLC, Touch Screen,

    Encoding counter

    • Device Configuration
    Nonumber
    (1)Manual decoiler1 set
    (2)Guiding device1 set
    (3)Main roll forming machine1 set
    (4)Hydraulic cutting device1 set
    (5)PLC electric control system1 set
    (6)Hydraulic driving system1 set
    (7)Special tools and parts1 set
    • Equipment For Process Flow

    Consist of Decoiler, Main roll forming machine, Cutting device, Hydraulic drive system, Electric control cabinet, ect.


    Coil Width 600mm Standing Seam Roll Forming Machine

    Coil Width 600mm Standing Seam Roll Forming Machine
