    Weight 7 Tons Purlin Roll Former , U Channel Roll Forming Machine Pressure 10-12MPa

    Weight 7 Tons Purlin Roll Former , U Channel Roll Forming Machine Pressure 10-12MPa


    Technical parameters:


    Raw material
    material specsheet, galvanized steel sheet, aluminum sheet
    thickness of coil sheet0.5-3mm
    Machine details
    roller materialHigh grade NO. 45 forged steel with 0.05mm hard chrome plating
    shaft materialHigh grade NO. 45 carbon wrought steel
    cutting bladeCr12 mould steel with quenched treatment
    diameter of shaft80mm
    forming steps12 rows
    productivity20-25m/min
    hydraulic station power22 KW
    hydraulic pressure10-12MPa
    controlling systemfamous PLC computer control
    material of cutting tableCr 12 mould steel with quenched treatment
    appearance size7500mm*1150mm*1510mm
    hydraulic oil40# hydraulic oil
    Electric tension380V 50 Hz 3 Phase or as your requirements

    Device Configuration

    Nonumber
    (1)Manual decoiler1 set
    (2)Guiding device1 set
    (3)Main roll forming machine1 set
    (4)Hydraulic cutting device1 set
    (5)PLC electric control system1 set
    (6)Hydraulic driving system1 set
    (7)Special tools and parts1 set

    Characteristic


    • Adopt touch screen control box through the man-machine interface, convenient operation, good appearance, consistent with the whole equipment.
    • The main components will stable performance, good reputation, global procurement.
    • Using a number of control technology, automation degree is high.
    • Encoder count, length accurately.

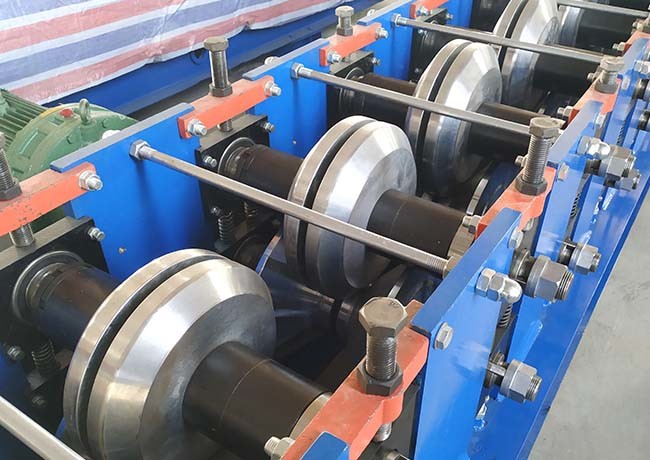

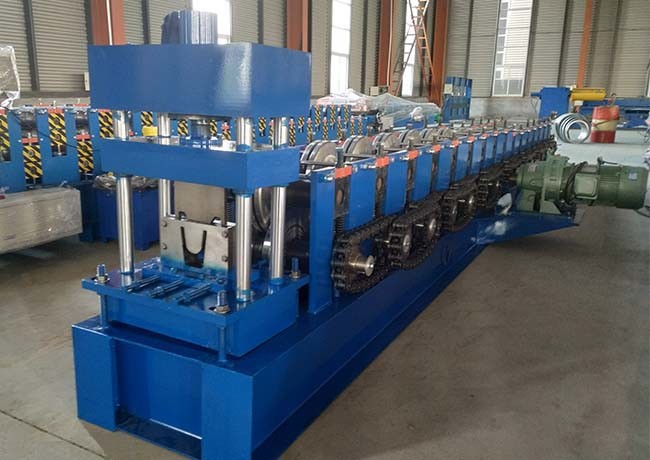

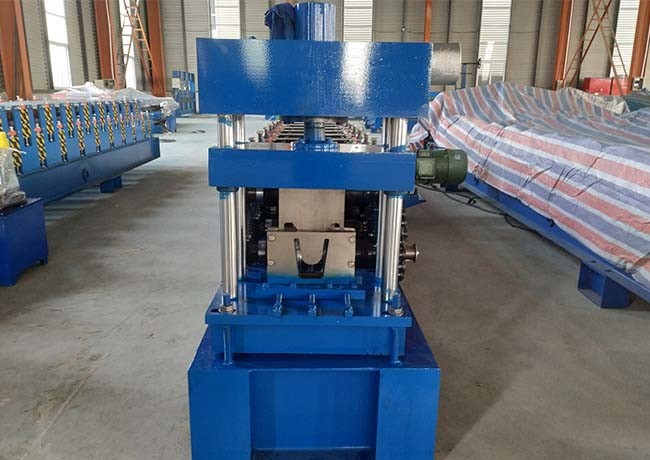

    Machine picture
    Weight 7 Tons Purlin Roll Former , U Channel Roll Forming Machine Pressure 10-12MPaWeight 7 Tons Purlin Roll Former , U Channel Roll Forming Machine Pressure 10-12MPaWeight 7 Tons Purlin Roll Former , U Channel Roll Forming Machine Pressure 10-12MPa
    Installation and training:

    A. If buyers visit our factory and check the machine, we will teach you how to install and use the machine, and also trainyour workers/technician face to face.

    B. Without visiting, we will send you user manual and video to teach you to install and operate.

    C. If buyer needs our technician to go to your local factory, please arrange board and lodging and other necessary things.


    FAQ


    1. Q: Are you manufacturer or trading company?
    A: We are manufacture and trading company.
    2. Q:What info you need before you make the proposal?
    A:The pipe diameter and thickness range which you need or the profile drawings, material information, your special requirements.
    3. Q: Can you make the machine according to my design or prototype?
    A: Yes, we have an experienced team for working out the most suitable design and production plan for the machine that you are going to book with us.
    4. Q: How does your factory do regarding quality control?
    A :There is no tolerance regarding quality control. Quality control complies with ISO 9001.every machine has to past testing running before it's packed for shipment.
