PPGI GI IBR Sheet Roll Forming Machine / IBR Making Machine Motor Power 3kw

Ask Lasest Price
Brand Name :	OEM
Model Number :
Certification :	CE;ISO
Supply Ability :	20 sets per month
Delivery Time :	40days
Price :	Negotiable
Payment Terms :	L/C, T/T, Western Union

Add to Cart

Product Details
Company Profile

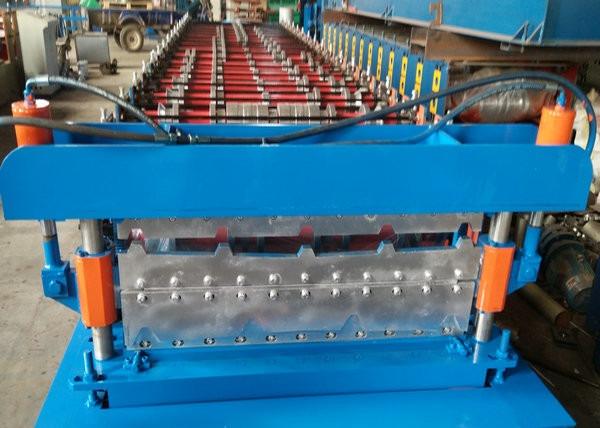

PPGI GI IBR Sheet Roll Forming Machine / IBR Making Machine Motor Power 3kw

PPGI GI IBR Sheet Roll Forming Machine / IBR Making Machine Motor Power 3kw

Machine components

No.	Name	Qty
1.	De-coiler	1 Set
2.	Roll Forming Machine	1 Set
3.	Hydraulic Cutting Device	1 Set
4.	PLC Control Box	1 Set
5.	Hydraulic Pump	1 Set
6.	Output table	1 Set

Decoiler

Type	Manual type(standard)	Hydraulic type(option)
Width	1250mm	1500mm
Capacity	Max 5tons	From 5-15 tons
Inner diameter	φ508-610mm	φ508-610mm
Outer diameter	φ1500mm	φ1800mm

roll forming

(1) Material Thickness: 0.3-0.8mm
(2) Rollers: 11Groups
(3) Material for Rollers: 45# steel polished and coated with chrome HRC55-60°
(4) Material for shaft: high grade No.45 steel after treatment

(5) Diameter of shaft: 70mm

(6) Frame panel thickness: 14mm

(7) Bottom frame: 36# H-section steel
(8) Motor Power:3kw

(9) Driven type: 0.6＂Chain

Cutting

Type	bearing sliding type
Blade material	Cr12mov quenching and grinding
Frame processing	the whole bottom frame is grinding for high-precision
Blade processing	wire-electrode cutting, but the upper balde can not be straight. this is technology
Working	Hydraulic type

Stacker

Type	Manual	Auto(option)
Length	1.5m-2m	6m or 12m

PLC

Main item	Parameter detail
PLC	Delta(standard) or according to your request
Inverter	China brand(standard) or according to your request
Touch screen	Mcgs(standard) or according to your request
Encoder	China brand(standard) or according to your request
Voltage/HZ/Phase	380v/50-60hz/3phase

Hydraulic pump

Main Item	Parameter detail
Motor	3kw China brand or according to your request
Pump	China brand or according to your request
Solenoid valve	China brand or according to your request
Cooling system	Cooling fan
