Corrugated / IBR Roll Forming Machine , Double Layer Roll Forming
Machine 13-22 Stations

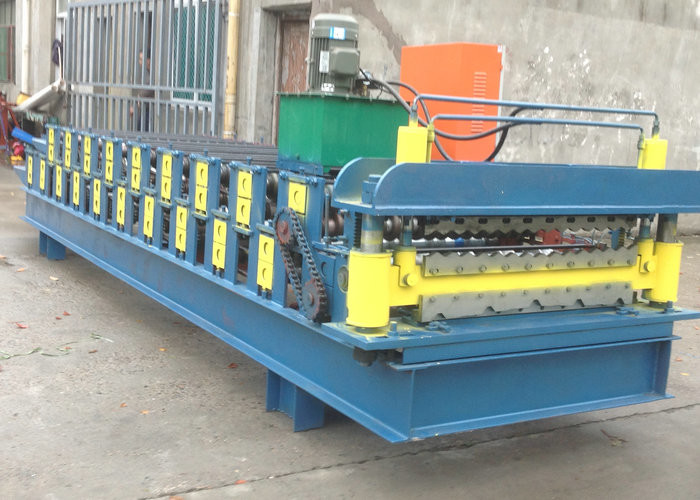

Machine components
De-coiler------------------------------------------2sets
Forming machine--------------------------------1set
Cutting device -----------------------------------1set
PLC control box ---------------------------------1set
Hydraulic pump station-------------------------1set
Production support table-----------------------1set
Decoiler
(1) Max. Width: 1250 mm
(2) Inner Diameter: Φ508 – Φ610 mm
(3) Out Diameter: 1500 mm
(4) Max. Loading Capacity: 5000 kgs
roll forming
| Item | Parameter detail |
| Processing Material | GI and PPGI |
| Material thickness | 0.25-0.8mm |
| Machine frame | 360#H steel, Adopt diagonal line welding, leveling instrument
measurement to make sure the final frame is high-precision |
| Machine siding panel | | plate type | Pillar type(option) |  |  | | Plate thickness:20mm | Pillar thickness:30mm | | Painting:normal painting | painting:Chroming |
|
| Forming stations | 13-22 stations(according to the profiles) |
| Machine rollers | high grade No.45 forged steel,plated hard chroming with thickness
0.05mm
Processing way:cutting--drilling--CNC lathing--quenching--CNC
lathing--chroming |
| Machine Shaft | φ70-80mm high garde No.45 steel after treatment, |
| Machine spacers | CNC lathing in high-precision |
| Machine bearings | China Haerbin bearing or SKF international bearing(option) |
| Driving system | 1 inch chain or gear box(option) |
| Machine power | 3kw-11kw(according to the profiles) |
| Machine working speed | 8-12m/min or 10-30m/min(option) |
| Machine adjust type | After machine installation, we will test it ourselves, compare with
the profile drawing, the difference is controlled in 0.5mm |
Cutting
(1) Material for Cut-Off Modular:Cr12 steel after treatment
(2) Hardness for Heat Treatment:HRC55 – 60°
(3) Cut-Off Type: Hydraulic, Automatic Cut-Off
(4) Motor for Hydraulic Stand: 3 kw
PLC
(1) Type: PLC Frequency Control System with touch screen
(2) PLC Brand: Japan Panasonic
(3) Encoder Brand: Omron
(4) Length Error: ±2mm
(5) Language: English and Chinese
