Double Profile Drywall Stud Roll Forming Machine 380V 60Hz With Memorial Gate Frame

Ask Lasest Price
Brand Name :	OEM
Model Number :
Certification :	CE;ISO
Price :	Negotiable
Payment Terms :	L/C, T/T, Western Union
Supply Ability :	20 sets per month
Delivery Time :	40days

Add to Cart

Product Details
Company Profile

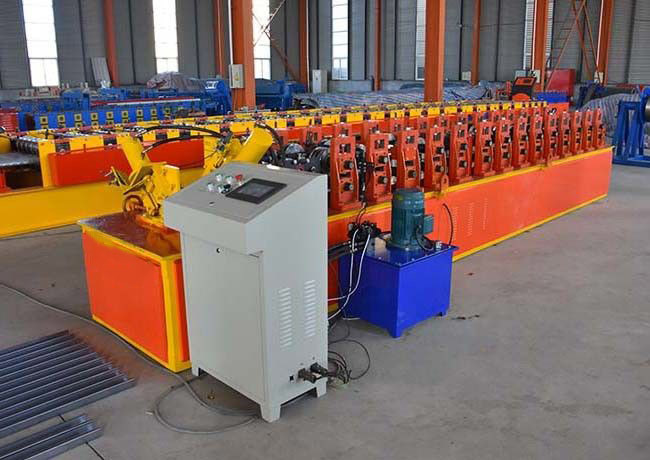

Double Profile Drywall Stud Roll Forming Machine 380V 60Hz With Memorial Gate Frame

Double Profile Drywall Stud Roll Forming Machine 380V 60Hz With Memorial Gate Frame

Double stud profile light steel keel roll forming machine with memorial gate frame

---- You can produce two different shap design in this one machine.

---- Memorial gate frame provide a suitable roll forming function.

---- Adjustable straighten ensure the final products in stright.

---- Hydraulic cutting system provide a stable cutting.

parameters

Material	Colored steel sheet, galvanized steel sheet, aluminum sheet
Thickness of coil sheet	0.5-1 mm
Efficiency width	25/30mm
Machine details
Roller material	High grade NO. 45 forged steel with 0.05mm hard chrome plating
Shaft material	High grade NO. 45 carbon wrought steel
Cutting blade	Cr12 mould steel with quenched treatment
Diameter of shaft	70mm or as your requirement
Main frame	300 H steel
Forming steps	16 stations
Productivity	30-35m/min
Hydraulic station power	5.5 KW
Hydraulic pressure	10-12MPa
Appearance size	7700mm1500mm1500mm
Hydraulic oil	40# hydraulic oil
Electric tension	380V 50 Hz 3 Phase or as your requirement
Cut Mode	Hydraulic forming after cutting off
Cutter materia	Cr12 Heat Treatment
Electronic control system	PLC, Touch Screen, Encoding counter
Color	Blue, green or yellow or as your requirement
Rolling material	45# steel,roller surfaces polishing, hard plating

Machine Components
No.	Name	QTY
1	Manual uncoiler	1 set
2	Feeding and leveling device	1 set
3	Roll forming system	1 set
4	Hydraulic punching and cutting	1 set
5	Product support frame	1 set
6	PLC Control System	1 set

Our service

1. Warranty :One year,and we will provide technical support for whole life of the equipment

2. Delivery time: Within 30 days after deposit receipt your payment

3. Guarantee period: 12months free service

4. Installation and training

If buyers visit our factory and check the machine, we will teach you how to install and use the machine and also train your workers/technician face to face

Without visiting,we will send you user manual and video to teach you to install and operate.

If buyer needs our technician to go to your local factory,please arrange board and lodging and other necessary things

Double Profile Drywall Stud Roll Forming Machine 380V 60Hz With Memorial Gate Frame
