Power 4 KW Gypsum Channel Roll Forming Machine Dimension 6500 * 800 * 1500mm

Power 4 KW Gypsum Channel Roll Forming Machine Dimension 6500 * 800 * 1500mm

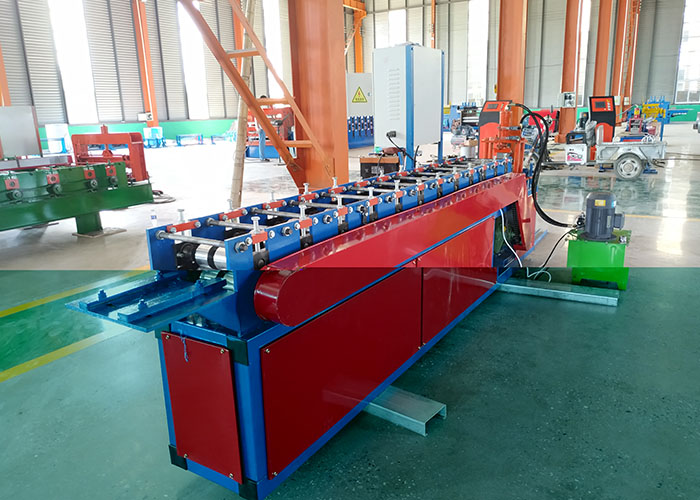

Metal channel customized size light steel keel roll forming machine for ceiling frame

The roll forming machine consists of manual uncoiler, infeed guide, fixed position driven forming stations, cutting equipment, hydraulic station, control console, and manual unload product run out table.

parameters
Production Capacity	15-20 m/min
Power(W)	4+4KW
Voltage	380V 50Hz 3phases
*Dimension(LWH)*	65008001500mm
Weight	3.5 T
Suitable material	Colored Steel plate, galvanized board, Aluminum plate
Width of the raw material	333 mm
Rows of rollers	18 rows
Material of roller	High grade 45# steel(plated chrome on surface)
Thickness of raw material	0.7-1.2 mm
Certification	ISO
Tile Type	Tile Cutting Machine

Machine Components
No.	Name	QTY
1	Manual uncoiler	1 set
2	Feeding and leveling device	1 set
3	Roll forming system	1 set
4	Hydraulic punching and cutting	1 set
5	Product support frame	1 set
6	PLC Control System	1 set

Service

1. we can produce the special machine,send your drawing to us,we can design for you.

2. if you buy our products,we also can help you to purchase the material,like color roll,the price is lower than you buy by yourself.

3. we provide a one year warranty and lifelong technical support, we can send our technicians to you to give you on-site training.

4. engineers available to service machinery overseas.

5. if you come to visit our factory,we can book the room for you, car pick up to send.

Thanks for visiting our products, if you have interest, pls leave your message, or you can contact us, speical design is avaliable!

The real data, the most professinal foreign trade team, your best trustable partner.
